Steel Structure Industry High Speed CNC H Beam Drilling Machine BT40 Main Spindle

Steel Structure Industry High Speed CNC H Beam Drilling Machine BT40 Main Spindle

Product Introduction:

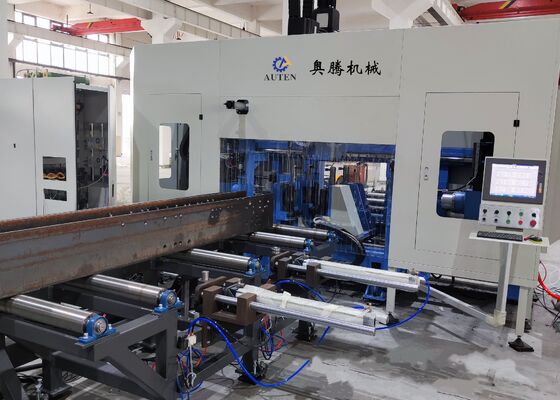

This machining center is expertly engineered for drilling operations on H-beams. Fitted with three high-speed precision drilling spindles, it ensures outstanding efficiency in the drilling of workpieces. With exceptional machining accuracy and intuitive operational features, this equipment represents an essential high-performance solution in the steel structure industry. It is widely utilized across critical sectors such as construction engineering, bridge infrastructure, tower mast manufacturing, and grid structure projects.

Product configuration information:

Product Features

1. This 3D H-beam drilling and cutting machine consists of the main machine framework, CNC feeding system, material conveyor, electrical system, hydraulic system, cooling system, lubrication system, waste bin, and other integral components. Featuring a fixed bed structure and a movable workpiece configuration, the machine is expertly designed for the processing of large-scale H-beams. It supports continuous production workflows and is widely recognized for its high degree of automation.

2. The drilling machine structure is composed of the bed, CNC sliding table assemblies, support devices, upper pressing units, side pressing units, and detection systems. The CNC sliding table components include the fixed side, movable side, and the upper-unit CNC sliding table. Specifically designed for H-beam drilling applications, the sliding table assemblies feature a sliding plate, sliding table base, spindle headstock, high-speed mechanical spindle, tool cylinder, variable-frequency motor, servo motor, linear guides, and lead screws.

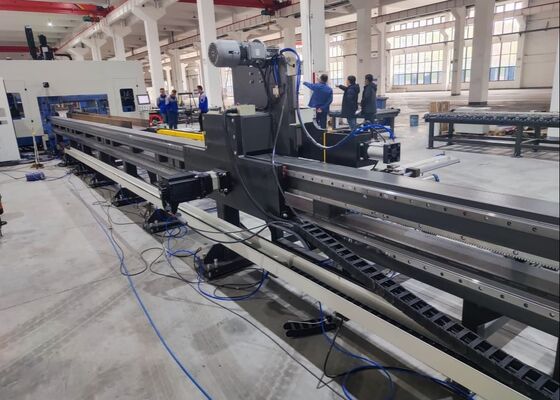

3. The CNC feeding system is comprised of brackets, gears, racks, servo motors, reducers, and manipulators. The servo motor drives the manipulator, enabling the movement of the H-beam along the X-axis, thereby ensuring precise feeding and accurate positioning of the workpiece.

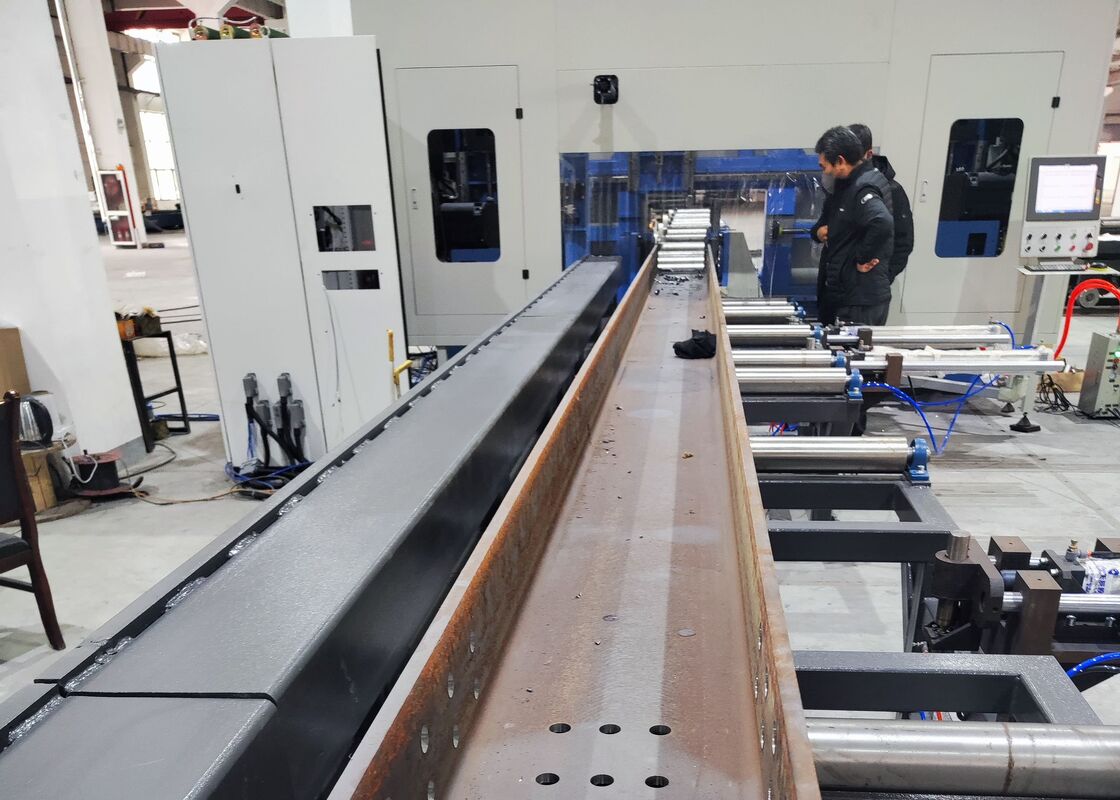

4. The material conveyor system includes both an in-feeding conveyor and an out-feeding conveyor. The in-feeding conveyor is equipped with conveyor brackets, support rollers, and side-pushing devices, all designed specifically to transport profiled steel blanks, facilitate Y-axis positioning of the blanks, and work in conjunction with the CNC feeding system to complete the material feeding process. The out-feeding conveyor, consisting of material channel brackets and support rollers, is dedicated to transporting finished workpieces.

5. The cooling system integrates both internal and external cooling methods, employing oil mist to cool the borehole. This solution offers several advantages, including reduced coolant consumption, improving cost-efficiency, supporting environmental sustainability, and decreasing drill bit wear.

6. The hydraulic system powers the upper pressing unit, side pressing unit, tool cylinder, and other associated components.

7. The pneumatic system is engineered to provide power to the manipulator, testing cylinder, and other similar equipment.

8. The lubrication system employs a combination of centralized and manual lubrication methods. Centralized lubrication is mainly used for the scheduled and precise lubrication of the primary linear guides and lead screws.

9. The machine tool’s control system consists of a host computer, PLC, and other associated components. Programming Method: Processing programs are created by inputting CAD drawings or processing parameters via a USB interface or keyboard. These programs can be stored, retrieved, displayed, and transmitted at any time based on part numbers. The machine tool allows for manual adjustment and control of individual processing parameters, while also enabling fully automated control throughout the entire processing cycle.

During sample demonstration sessions, the CNC beam and sheet metal drilling, marking, and shearing machine effectively showcases its processing capabilities when working with standard H-beam samples—featuring varying flange widths and web thicknesses—as well as channel steel samples of different sizes. The specimens presented in these demonstrations clearly highlight the equipment’s ability to achieve precise hole placement, smooth tapped threads, and well-defined marking patterns, thereby thoroughly demonstrating its high accuracy and dependability in real-world application scenarios.

The High-Speed CNC H-Beam Drilling, Marking, and Shearing Machine is predominantly utilized in steel structure manufacturing plants and bridge construction projects. In steel structure workshops, it provides precise machining for H-beams used in frameworks and support structures, ensuring a strong foundation for the stable assembly of steel frameworks. In bridge construction, the machine performs high-precision drilling on H-beams, enhancing the structural integrity of bridges and enabling them to withstand long-term loads effectively. With exceptional operational efficiency, this machine offers dependable support for these critical infrastructure sectors, facilitating the smooth and timely progression of related projects.
