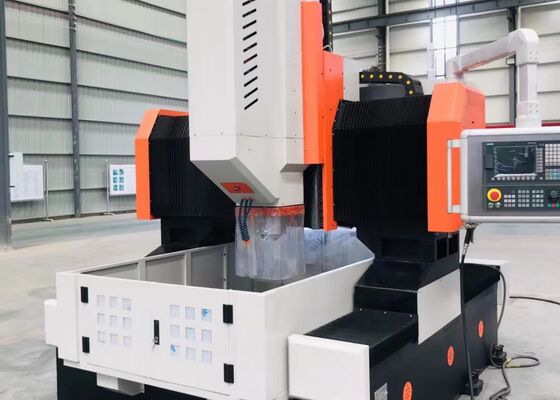

Model PHD1212 Cnc Gantry Flange Boiler Drilling Machine 0~8 M/Min Z Axis Moving Speed

Model PHD1212 Cnc Gantry Flange Boiler Drilling Machine 0~8 M/Min Z Axis Moving Speed

Product Introduction

The CNC gantry-type drilling and milling machine is specifically designed to carry out drilling, chamfering, tapping, and milling operations on plate workpieces and structural components. It is capable of processing items such as flanges, discs, rings, and flat plates, with thickness parameters strictly adhering to the machine's defined effective processing range. The machine supports the machining of both through-holes and blind holes on monolithic and composite material components. Fully integrated with digital control across the entire machining cycle, it ensures ease of operation and exceptional efficiency. This machine is ideally suited for automated production, delivering high-precision results to meet the demands of multi-variety and large-scale manufacturing applications.

Specifications:

Product Features

1. Transmission System

The high-precision guide rails and sliders, sourced from Taiwan, are specifically engineered to ensure smooth performance while significantly enhancing the equipment’s load-bearing capacity. The X-axis and Z-axis are equipped with two and four rolling linear guides, respectively, serving as the guiding and load-bearing elements for both lateral and longitudinal movements. This arrangement fully satisfies the technical demands for high-speed drilling operations. In terms of power transmission, both the X-axis and Z-axis are driven by AC servo motors, which drive precision ball screws to convert rotational motion into precise linear displacement.

The Y-axis is equipped with two robust rolling linear guides, each fitted with two square rail sliders, forming the Y-axis sliding mechanism. This configuration not only meets the stringent rigidity and strength requirements of the gantry frame but also offers several technical benefits, including a low friction coefficient, high-speed movement, superior vibration damping, and an extended operational lifespan. For power transmission, the Y-axis utilizes synchronous servo motor drive technology, which drives the ball screws simultaneously, enabling precise reciprocating motion of the Y-axis workbench to ensure accurate CNC machining operations.

2. Automatic Lubrication System and Protective Mechanisms:
This machine is outfitted with a Taiwan-made volumetric partial-pressure automatic lubrication system, providing thorough, angle-free lubrication to moving components such as guide rails, lead screws, and racks, thereby greatly prolonging the machine’s service life. The X-axis and Y-axis are safeguarded by dustproof covers, while waterproof splash guards are installed around the workbench, offering enhanced protection during operation.

3. Central Coolant Delivery System:
This machine features a standard central coolant delivery system. The internal coolant circulation effectively prevents iron chips from adhering to the tool during machining, thereby reducing tool wear, extending tool life, and improving the surface finish of workpieces. The high-pressure coolant outlet at the tool tip ensures reliable protection for both the workpiece surface and the high-speed rotary joint, preventing blockages caused by contaminants and enhancing both workpiece quality and overall operational efficiency.

This advanced CNC gantry-type industrial equipment, designed for drilling and marking operations on plate and sheet metal, is precisely engineered for the accurate machining of plate-like components and structural parts. Specifically tailored for processing workpieces such as flanges, discs, rings, and flat plates, it is constructed to a critical specification, ensuring that the thickness of these workpieces strictly adheres to the machine's predefined effective machining parameters.

In steel structure manufacturing facilities, this equipment performs precise drilling and milling operations on structural plates and connecting components, establishing a solid foundation for the stable assembly of steel frameworks. Within the wind energy sector, it provides high-precision machining solutions for wind turbine towers and flanges—critical operations that ensure these components are capable of withstanding extreme environmental conditions (e.g., strong winds, temperature fluctuations). For bridge construction projects, the equipment processes bridge girders and support brackets, enabling the formation of strong, durable connections designed to withstand dynamic loads throughout the bridge's extended service life.
