Product Introduction:

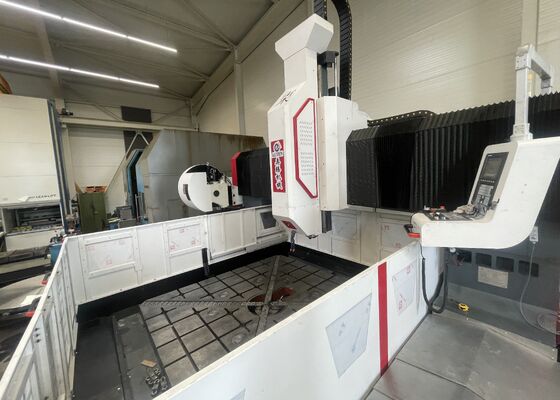

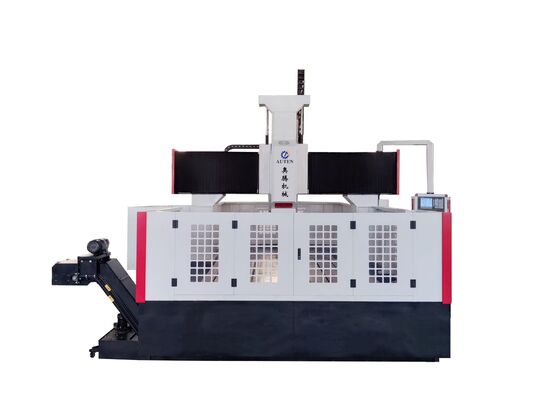

This CNC gantry drilling system is specifically engineered for drilling, chamfering, tapping, and milling operations on plate and structural components. It is primarily used for high-efficiency drilling of flanges, discs, rings, plates, and other workpieces within the defined thickness range. The system is capable of processing both through-holes and blind holes on single-material and composite materials. Featuring digital control, the machining process ensures seamless operation and an intuitive user interface. The equipment supports automation, delivers high precision, and is ideal for producing a wide variety of components, suitable for both small-batch production and large-scale manufacturing.

Specifications:

Equipment Structure:

The machine base is constructed from cast material and incorporates essential components such as the worktable, movable gantry, sliding saddle, drilling and milling power head, automatic lubrication system, safety features, circulating cooling system, digital control system, and electrical system. It employs rolling hard rail pairs for support and guidance, complemented by precision lead screw pairs for motion drive. The machine is widely recognized for its exceptional positioning accuracy and superior repeatability in positioning.

Product Features

1. Automatic Low Water Level Alarm

When the coolant in the filter reaches the medium level, the system automatically activates the motor, allowing the coolant from the chip conveyor to flow into the filter. Once the coolant reaches the high level, the motor will automatically stop.

If the coolant level in the filter drops to a low point, the system will trigger an alarm via the level gauge, causing the spindle to automatically retract the tool and halting the machine’s operation.

2. Power-Off Memory Function:

In the event of a sudden power loss or similar interruption, this function enables quick and easy retrieval of the last drilled hole location prior to the power failure. Operators can promptly resume operations, significantly reducing downtime spent on locating the previous drilling position and facilitating a seamless transition to the next step.

3.Photoelectric Edge Finder:

The equipment is equipped with a photoelectric edge finder, enabling quick and precise localization of the workpiece's position.

1. Insert the edge finder into the spindle chuck of the machine tool and slowly rotate the spindle to ensure its concentricity.

2. Use the handwheel to move the main shaft, positioning the steel ball edge of the edge finder to lightly touch the workpiece. When the red light turns off, the spindle is ready for reversal. Move the spindle back and forth to find the optimal point where the edge of the steel ball contacts the workpiece.

3. Record the X and Y axis values displayed by the CNC system at this point and input them into the computer.

4. Repeat this process to locate multiple detection points as needed.

.

This advanced CNC gantry system is purpose-built for the high-efficiency drilling and marking of plate and sheet metal parts. It has been carefully engineered to ensure accurate processing of plate-like workpieces and structural assemblies, making it well-suited for machining flanges, discs, ring-shaped components, flat plates, and similar elements. A critical operational condition is that the thickness of the workpieces must be consistent with the machine's specified effective machining parameters.

In steel structure fabrication facilities, this equipment performs high-precision drilling and milling operations on structural plates and connection components, providing a solid foundation for the reliable assembly of steel frameworks. In the wind energy industry, it offers cutting-edge, high-accuracy machining capabilities for wind turbine towers and flanges, ensuring these components are engineered to endure harsh environmental conditions, such as extreme winds and temperature fluctuations. For bridge construction projects, the equipment processes bridge girders and support brackets, enabling the formation of stable, long-lasting connections capable of withstanding dynamic loads throughout the bridge's extended service life.
